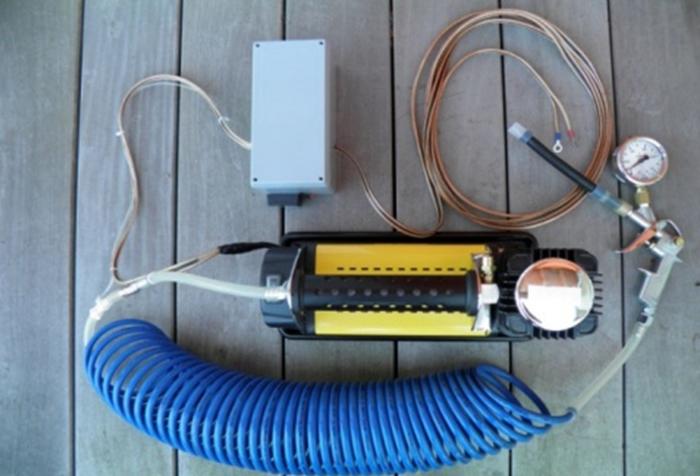

Technical data:

Rift-3: 12,0-13,8 V, 45 A.
Continuous run ca. 1 h.
Output air volume at 0,24 bar/3,5 PSI:
> 130 l/min (compressor type 2).
System switch on/off on the console.
Compressor running time meter (optional).
Stand-by without power consumption.
Mounting in engine room or in console.
Length of cable: user-defined up to 5 m.
Total weight: 12 kg.
Low maintenance.
Guarantee: 5 years.
Dimensions:
Compressor: 330 x 140 x 230 mm (l x b x h)
Control unit:  230 x 125 x  135 mm

Subject to alteration.

Price: on request.

Patent pending in Germany.


References:


Boomeranger Boats Loviisa Finland
Life-Saving Service of the Firebrigade city of Düesseldorf
Zodiac  Boats Zodiac Marine Germany
